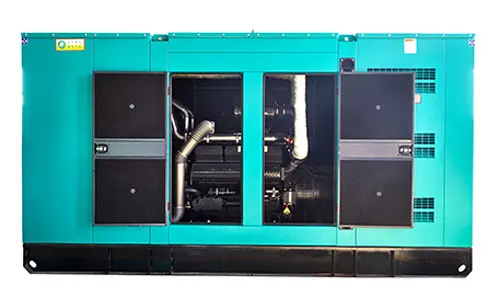

Silent Generator & Diesel Genset (Cummins, Weichai, Yuchai) 10-2000KVA-China Kaichen Power

PRODUCTS

Powerful power system
The engine adopts core technology independently developed by Weichai and has an output power range (20kva - 4000kva) to meet the power demand in multiple scenarios.
It has high speed adjustment accuracy, smooth operation and excellent load bearing capacity.
Efficient energy conversion
Excellent fuel economy and low long-term operating costs.
Superior environmental performance
It complies with Euro V and China IV emission standards, and some models meet higher environmental protection requirements.
The entire machine is made of high-quality components and has undergone rigorous testing, ensuring long-term stable operation.
It has the ability to resist complex working conditions such as high temperature, high humidity, dust and vibration, and can adapt to a variety of harsh environments.

50HZ
Genset Model	Standby Power		Prime Power		Engine Model	Dimension(MM)LWH
Genset Model	KVA	KW	KVA	KW	Engine Model	Dimension(MM)LWH
KC-WC30	30	24	25	20	WP2.3D30E201	15007501050
KC-WC41	41	33	38	30	WP2.3D41E201	15007501050
KC-WC50	50	40	44	35	WP2.3D47E201	15007501050
KC-WC63	63	50	50	40	WP2.3D58E201	18508001100
KC-WC83	83	66	75	60	WP4.1D80E201	19008701180
KC-WC104	104	83	94	75	WP4.1D95E201	19008701180
KC-WC125	125	100	113	90	WP4.1D115E201	22508801250
KC-WC138	138	110	125	100	WP6D132E201	24009501510
KC-WC165	165	132	150	120	WP6D158E201	24009501510
KC-WC188	188	160	175	140	WP6D180E201	24009501510
KC-WC206	206	165	188	150	WP10D200E201	285010401580
KC-WC250	250	200	225	180	WP10D238E201	285010401580
KC-WC280	280	220	250	200	WP10D264E201	305011001800
KC-WC400	400	320	375	300	WP10D360E201	285010401580
KC-WC413	413	330	375	300	WP13D385E201	335011501800
KC-WC575	575	460	500	400	WP13D510E311	335011501800
KC-WC625	625	500	563	450	6M33D572E201	380016002200
KC-WC725	725	580	650	520	6M33D633E201	380016002200
KC-WC750	750	600	688	550	6M33D670E201	410020002250
KC-WC800	800	640	725	580	6M33D710E201	380016002200
KC-WC825	825	660	750	600	6M33D740E311	380016002200
KC-WC875	875	700	800	640	8M33D800E311	390018002200
KC-WC875	875	700	800	640	12M26D792E201	410020002250
KC-WC1000	1000	800	900	720	8M33D895E311	390018002200
KC-WC1000	1000	800	900	720	12M26D902E201	410020002250
KC-WC1100A	1100	900	1000	800	12M26D1012E201	440020002250
KC-WC1100B	1100	900	1000	800	12M33D1012E201	470022002400
KC-WC1125	1125	900	1000	800	8M33D1012E311	400019002200
KC-WC1250	1250	1000	1125	900	12M33D1108E201	470022002400
KC-WC1375	1375	1100	1250	1000	12M33D1265E201	470022002400
KC-WC1650	1650	1320	1500	1200	12M33D1320E20	470022002400
KC-WC1800A	1800	1430	1625	1300	12M33D1420E201	470022002400
KC-WC1800B	1800	1430	1625	1300	12M33D1420E201	470022002400
KC-WC1925	1925	1540	1750	1400	16M33D1680E311	540022502500
KC-WC2065	2065	1650	1875	1500	16M33D1785E311	540022502500
KC-WC2400	2400	1925	2188	1750	16M33D1920E311	540022502500
KC-WC2475	2475	1980	2250	1800	20M33D2230E311	540022502500
KC-WC2750	2750	2200	2500	2000	20M33D2460E311	700024002600
KC-WC3125	3125	2500	2812	2250	12M55D2700E311	730024002800
KC-WC3300	3300	2640	3000	2400	16M55D2960E311	750027003000
KC-WC3500	3500	2800	3250	2600	16M55D3150E311	780027003100
KC-WC3750	3750	3000	3375	2700	16M55D3350E311	800028003200
KC-WC4125	4125	3300	3750	3000	16M55D3600E311	800028003300

">Weichai engines KC genset 50HZ

Yuchai engines KC genset

Adopting Yuchai engines, featuring strong transient loading capacity, good maintainability and long service life;
YUCHAI Engines run smoothly, with low noise and small vibration. They have strong load resistance,Continuous operation with high combustion efficiency and low fuel consumption;
Precise control of fuel injection volume and abundant intake air, ensuring the full combustion and less emission of the diesel engine under different load conditions;
The products meet domestic and international emission standards, have compact structure, convenient maintenance, long service life, and high reliability and economy.

50HZ
Genset Model	Standby Power		Prime Power		Engine Model	Dimension(MM)LWH
Genset Model	KVA	KW	KVA	KW	Engine Model	Dimension(MM)LWH
KC-Y23	23	18	20	16	YC4V35-D20	17006501000
KC-Y34	34	27	30	24	YC4V45Z-D20	17006501000
KC-Y41	41	33	38	30	YC4V55Z-D20	17007001000
KC-Y44	44	35	40	32	YC4D60-D25	18007001000
KC-Y69	69	55	63	50	YC4D90Z-D25	19007501100
KC-Y75	75	60	69	55	YC4A100Z-D20	19007501100
KC-Y113	113	90	100	80	YC4A140L-D25	210011001300
KC-Y138	138	110	125	100	YC4A180L-D20	220011001400
KC-Y150	150	120	125	100	YC6B180L-D20	220011001400
KC-Y165	165	132	150	120	YC6B205L-D20	230011001500
KC-Y193	193	154	175	140	YC6A230L-D20	240011001500
KC-Y206	206	165	188	150	YC6A245L-D21	250011001600
KC-Y275	275	220	250	200	YC6MK350L-D20	290011001600
KC-Y344	344	275	313	250	YC6MK420L-D20	310011001850
KC-Y388	388	310	350	280	YC6MK460L-D20	310011001850
KC-Y400	400	320	375	300	YC6MK480L-D20	320012001850
KC-Y413	413	330	375	300	YC6MJ500-D21	325012001600
KC-Y440	440	352	400	320	YC6MJ540-D30	325012001700
KC-Y495	495	396	450	360	YC6MJ600-D30	345014001800
KC-Y550	550	440	500	400	YC6T660L-D20	350014001900
KC-Y625	625	500	563	450	YC6TD780-D31	350014001900
KC-Y688	688	550	625	500	YC6TD840-D31	360014001900
KC-Y750	750	600	688	550	YC6TD900-D31	360014002200
KC-Y825	825	660	750	600	YC6TD1000-D31	410019002200
KC-Y880	880	704	800	640	YC6TD1100-D30	420020002200
KC-Y1000	1000	800	913	730	YC6TH1220-D31	420020002200
KC-Y1125	1125	900	1000	800	YC6TH1320-D31	420020002200
KC-Y1250	1250	1000	1125	900	YC6C1520-D31	430020002200
KC-Y1375	1375	1100	1250	1000	YC6C1660-D31	440020002200
KC-Y1500	1500	1200	1375	1100	YC12VTD1830－D30	460022002450
KC-Y1650	1650	1320	1500	1200	YC12VTD2000－D30	460023002450
KC-Y1856	1856	1485	1688	1350	YC16VTD2270-D30	470023002450
KC-Y2063	2063	1650	1875	1500	YC16VTD2510-D30	480024002500
KC-Y2200	2200	1760	2000	1600	YC16VTD2700-D30	530024002600
KC-Y2475	2475	1980	2250	1800	YC16VC3000-D31	550025002600
KC-Y2750	2750	2200	2500	2000	YC16VC3300-D31	580026002700
KC-Y3000	3000	2400	2750	2200	YC16VC3600-D31	600027002800
KC-Y3250	3250	2600	3000	2400	YC16VC4000-D31	610027002800
KC-Y3375	3375	2700	3125	2500	YC16VC4200-D30	610027002800
KC-Y3500	3500	2800	3250	2600	YC16VC4500-D30	620027003000
KC-Y3750	3750	3000	3500	2800	YC16VC4900-D30	650027003100

60HZ
Genset Model	Standby Power		Prime Power		Engine Model	Dimension(MM)LWH
Genset Model	KVA	KW	KVA	KW	Engine Model	Dimension(MM)LWH
KC-YC25	25	20	23	18	YC4V35-D21	14006501000
KC-YC35	35	28	31	25	YC4V45Z-D21	15006501000
KC-YC41	41	33	38	30	YC4V55Z-D21	15007001000
KC-YC50	50	40	44	35	YC4D65-D20	15007001000
KC-YC63	63	50	56	45	YC4D80Z-D20	17007001000
KC-YC75	75	60	69	55	YC4D100Z-D20	18007001000
KC-YC100	100	80	88	70	YC6B130Z-D20	19007501100
KC-YC106	106	85	94	75	YC4D140-D33	19007501100
KC-YC113A	113	90	100	80	YC4D155-D33	19007501100
KC-YC113B	113	90	100	80	YC6B160Z-D20	19007501100
KC-YC125	125	100	113	90	YC4D180-D33	220011001400
KC-YC165A	165	132	150	120	YC4A205-D32	230011001500
KC-YC165B	165	132	150	120	YC6B210L-D20	230011001500
KC-YC200	200	160	188	150	YC6A245-D32	240011001500
KC-YC220	220	176	200	160	YC6MK265Z-D20	290011001600
KC-YC225	225	180	206	165	YC6A285-D32	230011001500
KC-YC238	238	190	213	170	YC6A305-D32	240011001500
KC-YC275	275	220	250	200	YC6MK360L-D20	250011001600
KC-YC350A	350	280	313	250	YC6MK420-D31	300012001600
KC-YC350B	350	280	313	250	YC6MK420L-D21	300012001600
KC-YC400A	400	320	375	300	YC6MJ515L-D22	320012001600
KC-YC400B	400	320	375	300	YC6MK500-D32	350014001900
KC-YC550	550	440	500	400	YC6T660L-D21	350014001900
KC-YC650	650	520	575	460	YC6TD780-D32	360014001900
KC-YC688	688	550	625	500	YC6TD840-D32	360014002200
KC-YC713	713	570	650	520	YC6TD940-D32	410019002200
KC-YC825	825	660	750	600	YC6TD1020-D32	420020002200
KC-YC1000A	1000	800	900	720	YC6TH1070-D33	420020002200
KC-YC1000B	1000	800	900	720	YC12VTD1350-D32	420020002200
KC-YC1100	1100	880	1000	800	YC6TH1350-D33	430020002200
KC-YC1250	1250	1000	1125	900	YC12VTD1500-D32	430020002200
KC-YC1375A	1375	1100	1250	1000	YC12VTD1680-D33	440020002200
KC-YC1375B	1375	1100	1250	1000	YC12VTD1680-D32	440020002200
KC-YC1500A	1500	1200	1375	1100	YC12VTD1860-D33	460022002450
KC-YC1500B	1500	1200	1375	1100	YC12VTD1860-D32	460022002450
KC-YC1650A	1650	1320	1500	1200	YC12VTD2070-D33	460023002450
KC-YC1650B	1650	1320	1500	1200	YC12VTD2070-D32	460023002450
KC-YC1813	1813	1450	1650	1320	YC12VC2170-D33	470023002450
KC-YC1900	1900	1520	1750	1400	YC16VTD2270-D32	480024002500
KC-YC2063	2063	1650	1875	1500	YC16VTD2510-D32	530024002600
KC-YC2250	2250	1800	2063	1650	YC16VTD2700-D32	550025002600
KC-YC2750	2750	2200	2500	2000	YC20VTD3300-D30	580026002700

">Yuchai engines KC genset 50HZ/60HZ

Cummins engines KC genset

Adopting Cummins engines, offering cutting-edge design, dependable performance and long service life;
Alloy steel crankshaft and connecting rod, ensuring high durability;
Continuous operation with high combustion efficiency and low fuel consumption;
PT pump fuel injection technology, guaranteeing safe and reliable operation;
Anti-vibration units are optimally designed, while the pressure boosting system and low-speed cooling fan enable the noise level to be significantly lowered;
Generator excitation system allows the generator set to recover the voltage in the event of a sudden load, guaranteeing the reliability of operation.

50HZ
Genset Model	Standby Power		Prime Power		Engine Model	Dimension(MM)LWH
Genset Model	KVA	KW	KVA	KW	Engine Model	Dimension(MM)LWH
KC-C30	30	24	27	22	4B3.9-G2	18008501300
KC-C44	44	35	40	32	4BT3.9-G2	18009001400
KC-C69	69	55	62.5	50	4BTA3.9-G2	18009001400
KC-C70	70	56	65	52	4BTA3.9-G2	18009001400
KC-C90	90	72	80	64	4BTA3.9-G11	19008001400
KC-C110A	110	88	100	80	4BTA3.9-G13	19008001400
KC-C110B	110	88	100	80	6BT5.9-G2	22009001450
KC-C125	125	100	113	90	6BT5.9-G2	22009001450
KC-C138	138	110	125	100	6BTA5.9-G2	23009001450
KC-C150	150	120	138	110	6BTAA5.9-G2	235010001550
KC-C175	175	140	160	128	6BTAA5.9-G12	250010001550
KC-C200	200	160	180	145	6CTA8.3-G2	25009001560
KC-C215	215	172	200	160	6CTAA8.3-G2	26009001560
KC-C264	264	211	250	200	6LTAA8.9-G2	260010001600
KC-C275	275	220	250	200	6LTAA8.9-G3	260010001600
KC-C300	300	240	270	220	6LTAA9.5-G3	270011001700
KC-C313	313	250	275	220	NTA855-G1A	260016001500
KC-C340A	340	272	313	250	6LTAA9.5-G1	270011001700
KC-C340B	340	272	313	250	NTA855-G1B	300011001700
KC-C375	375	300	350	280	NTA855-G2A	300011001700
KC-C388	388	310	350	280	NTA855-G4	300011001700
KC-C413	413	330	375	300	NTAA855-G7	330012501850
KC-C425	425	340	388	310	6ZTAA13-G3	300013001700
KC-C438	438	350	400	320	QSNT-G3	290012501900
KC-C475	475	380	438	350	6ZTAA13-G4	300013001800
KC-C500	500	400	450	360	KTA19-G3	340014001900
KC-C513	513	410	500	400	QSZ13-G3	310012501850
KC-C550	550	440	500	400	QSZ13-G10	330014501900
KC-C563A	563	450	500	400	KTA19-G3A	340014002000
KC-C563B	563	450	500	400	KTA19-G4	340014502000
KC-C625	625	500	563	450	KTAA19-G5	360014602100
KC-C688	688	550			KTAA19-G6A	370015002200
KC-C800	800	640	725	580	KT38-GA	445017002360
KC-C825	825	660	750	600	KTA38-G2	445017002360
KC-C888	888	710	800	640	KTA38-G2B	445017002360
KC-C1000	1000	800	910	728	KTA38-G2A	445017002360
KC-C1100	1100	880	1000	800	KTA38-G5	440018002400
KC-C1250	1250	1000			KTA38-G9	480018002500
KC-C1375	1375	1100	1250	1000	KTA50-G3	520020002500
KC-C1650	1650	1320	1375	1100	KTA50-G8	590022702500
KC-C1875	1875	1500	1675	1340	KTA50-G15X	620023002550
KC-C2090	2090	1650	2000	1600	KTA50-G16B	620023002550

60HZ
Genset Model	Standby Power		Prime Power		Engine Model	Dimension(MM)LWH
Genset Model	KVA	KW	KVA	KW	Engine Model	Dimension(MM)LWH
KC-CU28	28	22	25	20	4B3.9-G11	19008001400
KC-CU35	35	28	30	25	4B3.9-G2	18008501300
KC-CU38	38	30	35	28	4B3.9-G12	18009001300
KC-CU50	50	40	45	36	4BT3.9-G2	18009001400
KC-CU70	70	56	64	51	4BTA3.9-G2	18009001400
KC-CU88	88	70	75	60	4BTA3.9-G2	18009001400
KC-CU100	100	80	90	72	4BTA3.9-G11	19008001400
KC-CU115	115	92	105	84	6BT5.9-G2	22009001450
KC-CU138	138	110	125	100	6BT5.9-G2	22009001450
KC-CU145	145	116	131	105	6BTA5.9-G2	23009001450
KC-CU165	165	130	150	120	6BTAA5.9-G2	235010001550
KC-CU175	175	140	160	128	6BTAA5.9-G12	250010001550
KC-CU209	209	167	190	152	6CTA8.3-G2	25009001560
KC-CU230	230	184	210	168	6CTAA8.3-G2	26009001560
KC-CU275	275	220			NT855-GA	260016001500
KC-CU285	285	228	260	208	6LTAA8.9-G2	260010001600
KC-CU313	313	250	288	230	6LTAA8.9-G3	260010001600
KC-CU325	325	260	285	230	6LTAA9.5-G3	270011001700
KC-CU350A	350	280	325	260	6LTAA9.5-G1	270011001700
KC-CU350B	350	280	313	250	NTA855-G1	300011001700
KC-CU375	375	300	350	280	NTA855-G1B	300011001700
KC-CU425	425	340	388	310	6ZTAA13-G3	290012001700
KC-CU438A	438	350	394	315	NTA855-G3	300011001700
KC-CU438B	438	350	400	320	QSNT-G3	290012501900
KC-CU475	475	380	438	350	6ZTAA13-G2	290012001700
KC-CU525	525	420	500	400	QSZ13-G3	310012501850
KC-CU550	550	440	500	410	KTA19-G3	340014001900
KC-CU625	625	500	560	450	QSZ13-G11	310012501850
KC-CU625A	625	500	563	450	KTA19-G3A	340014002000
KC-CU625B	625	500	563	450	KTA19-G4	340014502000
KC-CU688	688	550	588	470	KTAA19-G5	358015552150
KC-CU713	713	570	625	500	QSK19-G4	380016002200
KC-CU750A	750	600			KTAA19-G6A	370015002200
KC-CU750B	750	600	688	550	QSK19-G5	380015502200
KC-CU844	844	680	775	620	KT38-G	445017002360
KC-CU963	963	770	875	700	KTA38-G1	445017002360
KC-CU1000	1000	800	906	725	KTA38-G2	445017002360
KC-CU1038	1038	830	938	750	KTA38-G2B	445017002360
KC-CU1125	1125	900	1000	800	KTA38-G2A	445017002360
KC-CU1250	1250	1000	1125	900	KTA38-G4	440018002400
KC-CU1375	1375	1100			KTA38-G9	480018002400
KC-CU1438	1438	1150	1200	960	QSK38-G5	480018002400
KC-CU1550	1550	1240	1375	1100	QSK38-G4	530020002500
KC-CU1563	1563	1250	1375	1100	KTA50-G3	520020002500
KC-CU1875	1875	1500	1575	1260	KTA50-G9	590023002500

">Cummins engines KC genset 50HZ/60HZ

Perkins engine KC genset

Adopting Perkins engines, featuring strong transient loading capacity, good maintainability and long service life;

Perkins engine with complete product series and wide power coverage has remarkable stability, reliability, durability and service life, can provide you with low operating costs and fast “return” cycle, with wide applications in communications, Industry, outdoor engineering, mining, risk resistance, military and other fields. The 400, 1100, 1300, 2000 and 4000 series diesel engines are produced by Perkins and its production plants in accordance with its global unified quality standards. Perkins’ worldwide service network provides customers with dependable service guarantee.

50HZ
Genset Model	Standby Power		Prime Power		Engine Model	Dimension(MM)LWH
Genset Model	KVA	KW	KVA	KW	Engine Model	Dimension(MM)LWH
KC-P10	10	8	9	7	403A-11 G1	13505001090
KC-P14A	14	11	13	10	403A-15G1	14305001150
KC-P14B	14	11	13	10	403D-15G	14355001150
KC-P16	16	13	15	12	403A-15G2	14355001150
KC-P22	22	18	20	16	404A-22G1	16105601195
KC-P30	30	24	27	22	404D-22TG	16805601195
KC-P32	32	26	30	24	1103A-33G	18407001270
KC-P50	50	40	45	36	1103A-33TG1	19607001350
KC-P66	66	53	60	48	1103A-33TG2	20507001350
KC-P72	72	57	65	52	1104A-44TG1	22007001350
KC-P88A	88	70	80	64	1104A-44TG2	22007001350
KC-P88B	88	70	80	64	1104C-44TAG1	22807001350
KC-P110	110	88	100	80	1104C-44TAG2	22807001350
KC-P150	150	120	135	108	1106A-70TG1	25658501425
KC-P165	165	132	150	120	1106A-70TAG2	27508501350
KC-P200	200	160	180	144	1106A-70TAG3	28508501350
KC-P220	220	176	200	160	1106A-70TAG4	285010451825
KC-P254	254	203	231	185	1506A-E88TAG2	298010551695
KC-P283	283	226	257	206	1506A-E88TAG3	298010551695
KC-P338	338	270	307	246	1506A-E88TAG5	308010901700
KC-P400	400	320	350	280	2206C-E13TAG2	346011502030
KC-P450	450	360	400	320	2206C-E13TAG3	346011502030
KC-P500	500	400	455	364	2506C-E15TAG1	378012702020
KC-P550	550	440	500	400	2506C-E 15TAG2	378012702020
KC-P650	650	520	591	473	2806C-E 18TAG1A	378015362180
KC-P700	700	560	650	520	2806A-E18TAG2	378015362180
KC-P820	820	656	746	597	4006-23TAG2A	425016902150
KC-P880	880	704	800	640	4006-23TAG3A	425016902150
KC-P1000	1000	800	910	728	4008TAG1A	473522612256
KC-P1125	1125	900	1022	818	4008TAG2A	473522612256
KC-P1250	1250	1000	1125	900	4008-30TAG3	473522612256
KC-P1375	1375	1100	1250	1000	4012-46TWG2A	480021002297
KC-P1500	1500	1200	1375	1100	4012-46TWG3A	480021002297
KC-P1650	1650	1320	1500	1200	4012-46TAG2A	490021002297
KC-P1850	1850	1480	1688	1350	4012-46TAG3A	490021002297
KC-P2000	2000	1600	1850	1480	4016TAG1A	503525972150
KC-P2200A	2200	1760	2000	1600	4016TAG2A	503525972150
KC-P2200B	2200	1760	2000	1600	4016-61TRG2	525026002150
KC-P2500	2500	2000	2250	1800	4016-61TRG3	525026002150

60HZ
Genset Model	Standby Power		Prime Power		Engine Model	Dimension(MM)LWH
Genset Model	KVA	KW	KVA	KW	Engine Model	Dimension(MM)LWH
KC-P13	13	10	11	9	403D-11G	13505001090
KC-P16	16	13	15	12	403D-15G	14355001150
KC-P19	19	15	17	14	403A-15G2	14355001150
KC-P26	26	21	24	19	404D-22G	16105601195
KC-P35	35	29	33	26	404D-22TG	16105601195
KC-P38	38	30	35	28	1103A-33G	18407001270
KC-P59	59	47	54	43	1103A-33TG1	19607001350
KC-P75	75	60	68	55	1103A-33TG2	20507001350
KC-P84	84	67	76	61	1104A-44TG1	22007001350
KC-P100A	100	80	90	73	1104A-44TG2	22007001350
KC-P100B	100	80	90	72	1104C-44TAG1	22807001350
KC-P125	125	100	115	92	1104C-44TAG2	22807001350
KC-P169	169	135	152	122	1106A-70TG1	25658501425
KC-P188	188	150	169	135	1106A-70TAG2	27508501350
KC-P219	219	175	197	158	1106A-70TAG3	28508501350
KC-P273	273	218	248	198	1506A-E88TAG2	298010551695
KC-P320	320	256	290	232	1506A-E88TAG3	298010551695
KC-P390	390	312	352	282	1506A-E88TAG5	308010901700
KC-P438A	438	350	400	320	2206C-E13TAG2	346011502030
KC-P438B	438	350	400	320	2206C-E13TAG3	346011502030
KC-P563A	563	450	500	400	2506C-E15TAG1	378012702020
KC-P563B	563	450	500	400	2506C-E 15TAG2	378012702020
KC-P687	687	550	625	500	2806C-E 18TAG 1A	378015362180
KC-P825	825	660	750	600	4006-23TAG2A	425016902150
KC-P940	940	750	849	679	4006-23TAG3A	425016902150
KC-P1100	1100	880	1000	800	4008TAG2	473522612256
KC-P1375	1375	1100	1250	1000	4012-46TWG2A	480021002297
KC-P1500	1500	1200	1375	1100	4012-46TWG3A	480021002297
KC-P1650	1650	1320	1500	1200	4012-46TAG2A	490021002297
KC-P1850	1850	1480	1690	1350	4012-46TAG3A	490021002297

">Perkins engine KC genset 50HZ/60HZ

VOLVO manufacturer KC genset

The Volvo Group (Swedish: Volvokoncernen; legally Aktiebolaget Volvo, shortened to AB Volvo, stylized as VOLVO) is a Swedish multinational manufacturing corporation headquartered in Gothenburg. While its core activity is the production, distribution and sale of trucks, buses and construction equipment, Volvo also supplies marine and industrial drive systems and financial services. In 2016, it was the world’s second largest manufacturer of heavy-duty trucks.
Automobile manufacturer Volvo Cars, also based in Gothenburg, was part of AB Volvo until 1999, when it was sold to the Ford Motor Company. Since 2010 Volvo Cars has been owned by the Chinese multinational automotive company Geely Holding Group.

50HZ
Genset Model	Standby Power		Prime Power		Engine Model	Dimension(MM)LWH
Genset Model	KVA	KW	KVA	KW	Engine Model	Dimension(MM)LWH
KC-V94	94	75	85	68	TAD530GE	22008001500
KC-V138	138	100	125	100	TAD531GE	22009001500
KC-V155	155	123	140	112	TAD532GE	23009001500
KC-V173	173	138	156	125	TAD731GE	23009001500
KC-V206	206	165	188	150	TAD732GE	24009001500
KC-V220	220	176	200	160	TAD733GE	24009001500
KC-V275	275	220	250	200	TAD734GE	250010001550
KC-V345	345	275	313	250	TAD1341GE	260010001600
KC-V385	385	308	350	280	TAD1342GE	270011001600
KC-V413	413	330	375	300	TAD1342GE	280011001600
KC-V440	440	352	400	320	TAD1343GE	290012001600
KC-V500	500	400	450	360	TAD1344GE	290011001600
KC-V550	550	440	500	400	TAD1345GE	300012001700
KC-V625	625	500	563	450	TAD1641GE	310012001700
KC-V700	700	550	625	500	TAD1642GE	320013001800
KC-V756	756	605	688	550	TWD1643GE	330014001800

">VOLVO manufacturer KC genset 50HZ

Mitsubishi Industrial engines KC genset

Mitsubishi Industrial engines can meet all the current EPA regulations. Mitsubishi industrial engines have a worldwide reputation for reliability, fuel economy, and long life. Their long stroke and low compression reduces engine stress.
Service-friendly design saves maintenance costs and shortens machine downtime.
Mitsubishi diesel generator sets with power output range from 480KW to 2000KW.

50HZ
Genset Model	Standby Power		Prime Power		Engine Model	Dimension(MM)LWH
Genset Model	KVA	KW	KVA	KW	Engine Model	Dimension(MM)LWH
KC-M600	600	480			S6R-PTA	360016002300
KC-M650	650	520			S6R2-PTA	360016002300
KC-M750A	750	600			S6R2-PTAA	400018001950
KC-M750B	750	600			S12A2-PTA	400018001950
KC-M1000	1000	800			S12H-PTA	440018002500
KC-M1250	1250	1000			S12R-PTA	465021002600
KC-M1375	1375	1100			S12R-PTA2	465022002700
KC-M1500	1500	1200			S12R-PTAA2	465022002700
KC-M1625	1625	1300			S16R-PTA	540025003000
KC-M1875	1875	1500			S16R-PTA2	540025003000
KC-M2000	2000	1600			S16R-PTAA2	590025003500
KC-M2250	2250	1800			S16R2-PTAW	600026003500

">Mitsubishi Industrial engines can meet all the current EPA regulations. Mitsubis···

DOOSAN diesel engines

DOOSAN located in Korea first started producing diesel engines in 1958.The products have a high cost performance with the power range from 10VA-1200kVA, meet the domestic and international standards like GB/T2820, GB1105, YD/T502, SO8525-3, ISO3046, ISO8525 and US EPA and CARB emission standards.DOOSAN gen-set system can provide multiple protection functions for the oil temperature、water temperature、oil pressure、speed and overload of the unit, mainly used in national defense、aviation、vehicles、ships、construction machinery and generator sets.DOOSAN diesel engines are recognized by the world for the small size、compact weight、strong sudden load capacity、low noise and reliability.

50HZ
Genset Model	Standby Power		Prime Power		Engine Model	Dimension(MM)LWH
Genset Model	KVA	KW	KVA	KW	Engine Model	Dimension(MM)LWH
KC-H8	8	6	7	5	SP103NA	15007501030
KC-H15	15	12	14	11	SP173NA	15007501030
KC-H20	20	15	18	14	SP224NA	15007501030
KC-H28	28	22	25	20	SP244TA	15007501030
KC-H41	41	33	38	30	SP244CA	17007501150
KC-H55	55	44	50	40	SP344CA	18508001180
KC-H70	70	55	63	50	SP344CB	18508001180
KC-H90	90	72	81	65	SP344CC	18508001180
KC-H91	91	73	83	66	D1146	19008001250
KC-H131	131	105	119	95	D1146T	22508801300
KC-H165	165	132	150	120	DP086TA	265010001800
KC-H186	186	149	169	135	P086TI-1	265010001800
KC-H220A	220	176	200	160	P086TI	265010001800
KC-H220B	220	176	200	160	DP086LA	265010001800
KC-H303	303	242	275	220	P126TI	310011002000
KC-H330	330	264	300	240	P126TI-II	310011002000
KC-H415	415	330	375	300	DP126LB	310011002000
KC-H440	440	352	400	320	P158LE	340013502200
KC-H510A	510	407	463	370	P158FE	340013502200
KC-H510B	510	407	463	370	DP158LC	340013502200
KC-H584	584	468	531	425	DP158LD	340013502200
KC-H633	633	506	575	460	DP180LA	370017002200
KC-H688	688	550	625	500	DP180LB	370017002200
KC-H756	756	605	688	550	P222FE	370017002200
KC-H825	825	660	750	600	DP222LC	370017002200
KC-H840	840	671	763	610	DP222CA	370017002200
KC-H895	895	715	813	650	DP222CB-2	370017002200
KC-H1004	1004	803	913	730	DP222CC	370017002200

60HZ
Genset Model	Standby Power		Prime Power		Engine Model	Dimension(MM)LWH
Genset Model	KVA	KW	KVA	KW	Engine Model	Dimension(MM)LWH
KC-HD10	10	8	9	7	SP103NE	15007501050
KC-HD18	18	14	16	13	SP173NC	15007501050
KC-HD26	26	21	24	19	SP224NC	15007501050
KC-HD33	33	26	30	24	SP244TC	15007501050
KC-HD50	50	40	44	35	SP244CA	17007501150
KC-HD70	70	55	63	50	SP344CA	18508001180
KC-HD72	72	57	65	52	SP344CA	18508001180
KC-HD80	80	64	73	58	SP344CB	18508001180
KC-HD102	102	81	93	74	SP344CC	18508001180
KC-HD110	110	88	100	80	D1146	19008001250
KC-HD150	150	120	136	109	D1146T	22508801300
KC-HD206	206	165	188	150	DP086TA	265010001800
KC-HD210	210	167	190	152	P086TI-1	265010001800
KC-HD241	241	193	219	175	P086TI	265010001800
KC-HD345	345	275	313	250	P126TI	310011002000
KC-HD380	380	303	345	275	P126TI-II	310011002000
KC-HD454	454	363	413	330	DP126LB	310011002000
KC-HD500	500	400	450	360	P158LE	340013502200
KC-HD536	536	429	488	390	P158FE	340013502200
KC-HD580	580	462	525	420	DP158LC	340013502200
KC-HD605	605	484	550	440	DP158LD	340013502200
KC-HD693	693	554	630	504	DP180LA	370017002200
KC-HD745	745	595	675	540	DP180LB	370017002200
KC-HD825	825	660	750	600	P222FE	370017002200
KC-HD880	880	704	800	640	DP222LB	370017002200
KC-HD935	935	748	850	680	DP222LC	440020002250
KC-HD950	950	760	863	690	DP222CA	370017002200
KC-HD950	950	760	863	690	DP222CA-2	370017002200
KC-HD1018	1018	814	925	740	DP222CB-2	370017002200
KC-HD1100	1100	880	1000	800	DP222CC	440020002250

">DOOSAN located in Korea first started producing diesel engines in 1958.The produ···

Shangchai KC genset

Shangchai KC genset 50HZ/60HZ

50HZ
Genset Model	Standby Power		Prime Power		Engine Model	LWH (mm)
Genset Model	KVA	KW	KVA	KW	Engine Model	LWH (mm)
KC-S28	28	22	25	20	4H4.3-G21	18008201250
KC-S44	44	35	40	32	4H4.3-G22	18008201250
KC-S55	55	44	50	40	4HT4.3-G21	18508201300
KC-S88	88	70	80	64	4HT4.3-G23	18008201300
KC-S116	116	92	105	84	4HTAA4.3-G21	21708801400
KC-S135	135	108	125	100	4HTAA4.3-G22	21708801600
KC-S151	151	121	138	110	6HTAA6.5-G21	21708801400
KC-S161	161	129	150	120	6HTAA6.5-G22	21708801400
KC-S202	202	162	188	150	6HTAA6.5-G23	23509501600
KC-S220	220	176	200	160	6DTAA8.9-G21	25509801600
KC-S275A	275	220	250	200	6DTAA8.9-G22	25509801650
KC-S275B	275	220	250	200	6DTAA8.9-G23	25509801650
KC-S385	385	308	350	280	6ETAA11.8-G21	315011001850
KC-S438	438	350	400	320	6ETAA12.8-G32	315011001850
KC-S500	500	400	438	350	6ETAA12.8-G31	315011001850
KC-S385	385	308	350	280	6ETAA11.8-G33	315011001850
KC-S413	413	330	375	300	6ETAA11.8-G31	315011001850
KC-S563	563	450	500	400	6ETAA12.8-G310	360016902120
KC-S625	625	500	500	450	6KTAA25-G35	355014002000
KC-S688	688	550	625	500	6KTAA25-G34	360016902100
KC-S750	750	600	688	550	6KTAA25-G33	390018002200
KC-S825	825	660	750	600	6KTAA25-G32	390018002200
KC-S875	875	700	800	640	6KTAA25-G31	420018002200
KC-S1000	1000	800	900	720	6WTAA35-G32	430018002300
KC-S1100	1100	880	1000	800	6WTAA35-G31	430018002300
KC-S1250	1250	1000	1125	900	6WTAA35-G310	440018002400
KC-S1375	1375	1100	1250	1000	6WTAA35-G311	450019002400
KC-S1563	1563	1250	1375	1100	12KTA58-G36	450019002400
KC-S1688	1688	1350	1500	1200	12KTA58-G35	460020002400
KC-S1875	1875	1500	1688	1350	12KTA58-G34	470010002400
KC-S1938	1938	1550	1750	1400	12KTA58-G33	480020002400
KC-S2000	2000	1600	1875	1500	12KTA58-G32	480020002400
KC-S2250	2250	1800	2125	1700	12KTA58-G31	500020002400
KC-SH69	69	55	63	50	SC4H95D2	20008501400
KC-SH88	88	70	80	64	SC4H115D2	20008001360
KC-SH124	124	99	113	90	SC4H160D2	20009201450
KC-SH135	135	108	125	100	SC4H180D2	20009201435
KC-SH186	186	149	169	135	SC7H230D2	25809501600
KC-SH202	202	162	188	150	SC7H250D2	25009901600
KC-SH227	227	182	206	165	SC8D280D2	260010001750
KC-SH248	248	198	225	180	SC9D310D2	260010001700
KC-SH275	275	220	250	200	SC9D340D2	26009501600
KC-SH385	385	308	350	280	SC12E460D2	320011001750
KC-SH413	413	330	375	300	SC15G500D2	320012501850
KC-SH495	495	396	450	360	SC25G610D2	355014002000
KC-SH550	550	440	500	400	SC25G690D2	360017002150
KC-SH615	615	492	563	450	SC27G755D2	355014002000
KC-SH680	680	544	625	500	SC27G830D2	360017002100
KC-SH825	825	660	750	600	SC33W990D2	440018002300
KC-SH990	990	792	900	720	SC33W1150D2	440018002300

60HZ
Genset Model	Standby Power		Prime Power		Engine Model	LWH (mm)
Genset Model	KVA	KW	KVA	KW	Engine Model	LWH (mm)
KC-SC34	34	28	31	25	4H4.3-G21	18008201247
KC-SC55	55	44	50	40	4H4.3-G22	18008201247
KC-SC93	93	74	85	68	4HT4.3-G23	21708801278
KC-SC124	124	99	113	90	4HTAA4.3-G21	21708801359
KC-SC138	138	110	125	100	4HTAA4.3-G22	21708801392
KC-SC165	165	132	150	120	6HTAA6.5-G21	21708801397
KC-SC175	175	140	160	128	6HTAA6.5-G22	21708801397
KC-SC227	227	182	206	165	6HTAA6.5-G23	23509501570
KC-SC250	250	200	228	182	6DTAA8.9-G21	25509801582
KC-SC289	289	231	263	210	6DTAA8.9-G22	25509801650
KC-SC300	300	240	275	220	6DTAA8.9-G23	25509801650
KC-SC385	385	308	350	280	6ETAA11.8-G21	315011001825
KC-SC405	405	323	368	294	6ETAA11.8-G31	315011001825

">Shangchai KC genset 50HZ/60HZ

Southeast Asian Island Resort - Lone Grid Power Supply

South Asian Agriculture and Aquaculture - Power Sources

Middle Eastern construction sites - main power supply

Africa Data Center - Critical Backup Power Supply

Advantage

Why Choose Jiangsu Kaichen Power?

Quality Assured

Our commitment to quality is unwavering. We deliver durable and reliable products that ensure the safety and stability of your power systems.

Customer-First Service

We pride ourselves on our responsive and flexible service. We work closely with you to provide customized support and timely delivery.

Global Competitiveness

We combine high-quality manufacturing with competitive pricing, offering outstanding value for projects worldwide.

ABOUT US

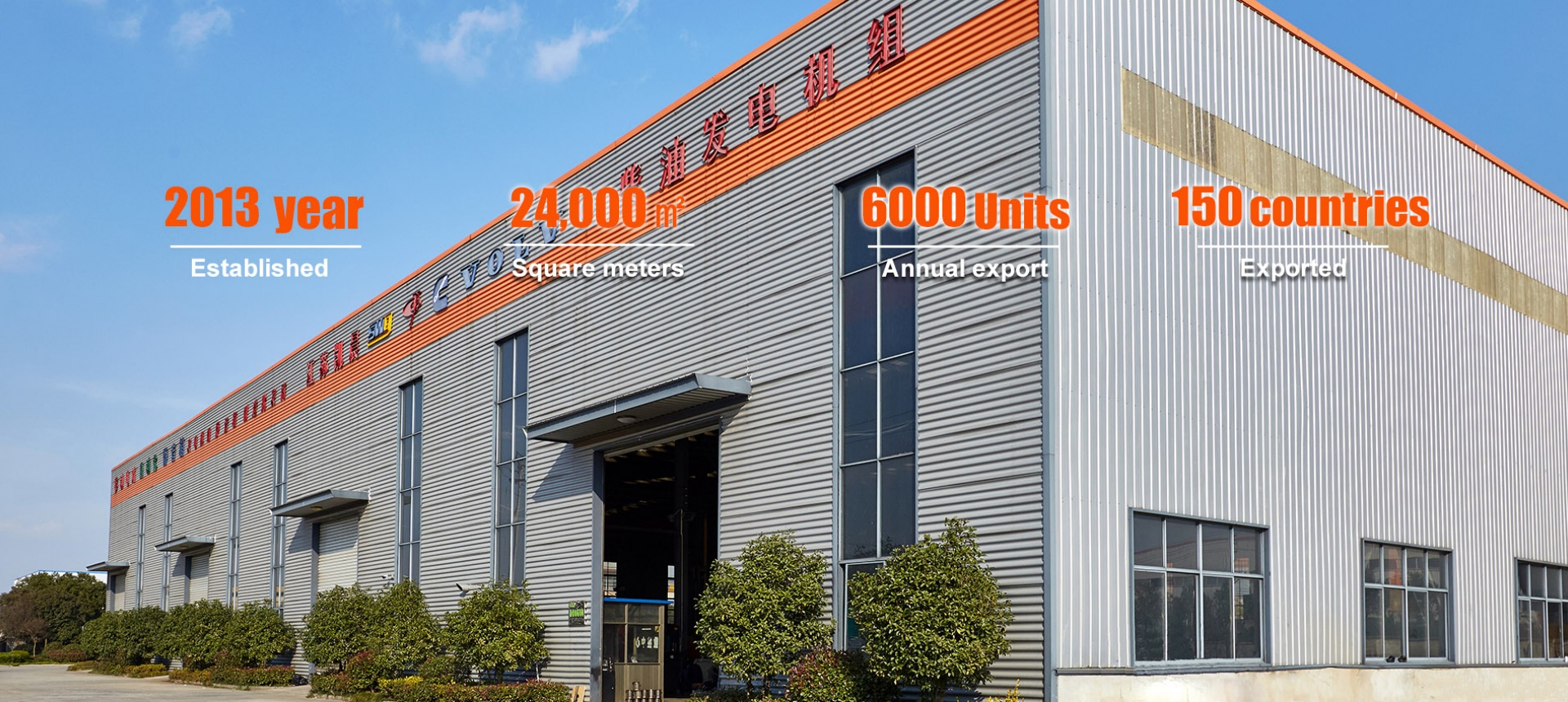

Jiangsu Kaichen Power Equipment Co., Ltd. is a leading professional manufacturer specializing in a comprehensive range of power generation solutions. Our core business encompasses the production and supply of both domestic and imported generator sets, including fully automatic, standard, and mobile power systems.With a substantial registered capital of RMB 80 million and a significant manufacturing footprint spanning 24,000 square meters, we have established a robust foundation for industrial excellence. The company operates as an integrated enterprise, consolidating production, sales, and wholesale distribution to ensure stringent quality control, competitive pricing, and efficient service delivery.Dedicated to reliability and innovation, Jiangsu Kaichen is committed to providing high-qua...

Multi system certification
Multi industry partnerships are trustworthy
PATENT: The company owns over 10 patents

Floor area

Annual sales

R&D experience(years)

Registered capital(millions)

Please send us your requirements and we will contact you soon

Get a free quote

NEWS

2026-01-16

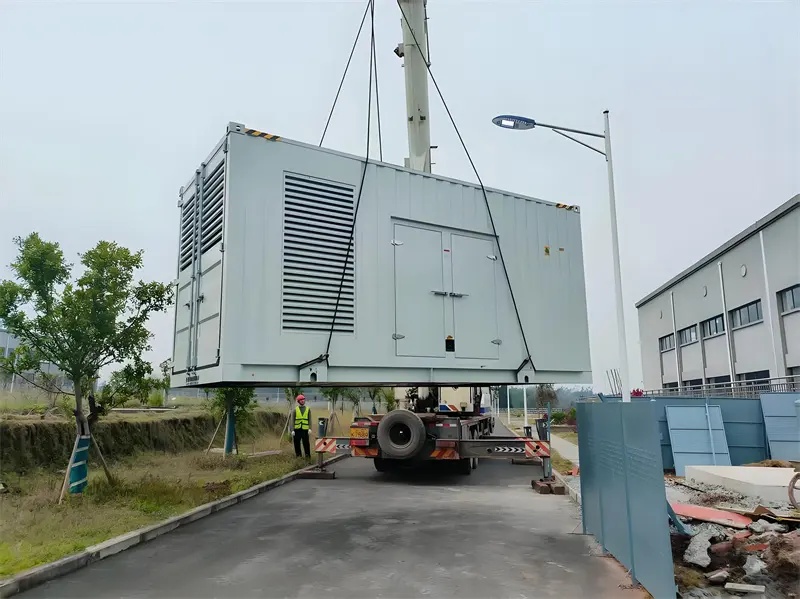

Powering Southeast Asia: Jiangsu Kaichen's 25MW Diesel Project

In the new era of global connectivity and economic interdependence, stable power supply is the core lifeline of national development and a key pillar for the im···

2026-01-16

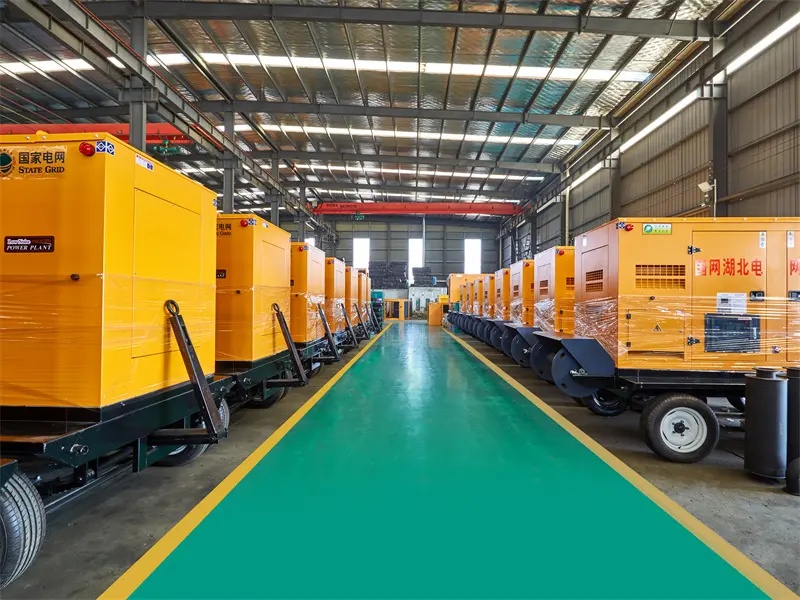

A Beacon of Hope Across Continents: Jiangsu Kaichen Powers Caribbean Recovery with Mobile Generation Solutions

When a catastrophic Category 4 hurricane tore through the Caribbean archipelago last year, it left a trail of destruction that extended far beyond collapsed bui···

2026-01-15

In the Face of Adversity, Unwavering Power: Jiangsu Kaichen's 12MW Generator Sets Empower Remote African Copper Mine, Sustaining Industrial Lifelines

On the global map of mineral resource development, the extreme environments of remote areas have always been the ultimate test for energy supply. As modern indu···
